Cold water high-pressure cleaners
With pressure and high flow rate, cold water high-pressure cleaners can remove stubborn dirt and are ideal for large surface areas. Applications include cleaning machines, vehicles and buildings daily.
Featured models
HD 5/11 P
HD 5/12 C
HD 6/13 C
HD 6/15 M
HD 9/23 De
HD 9/20-4S
HD 10/25-4S
HD 9/23 G

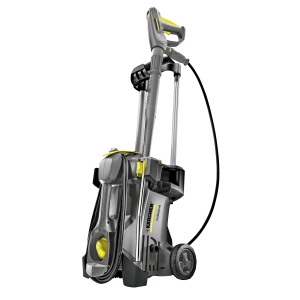

HD 5/11 P Order number: 1.520-960.0 Portable Class high-pressure cleaner The HD 5/11 P is compact, light and mobile. Equipment details: carrying handle, brass cylinder head and automatic pressure relief. For vertical and horizontal operation. |
Description
The “HD 5/11 P” portable high-pressure cleaner impresses with its compact construction style, low weight and outstanding mobility. The machine features a reliable three-piston axial pump with brass cylinder head. An additional carrying handle and the extendable push handle make it easier to transport the machine and store it in small spaces. Suitable for vertical and horizontal operation. The practical accessory storage features include a nozzle compartment, screw connection (M 18 x 1.5) for Surface Cleaner, and a practical rubber band for securing the power cable. The automatic pressure relief system impresses by offering clear advantages: it protects the components, extends the service life, reduces repair and maintenance costs and lowers the pulling force on the new EASY!Force high-pressure gun. This also makes use of the recoil force of the high-pressure jet to reduce the holding force to zero. The EASY!Lock quick-release fasteners, which are also new, make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity.
- Save time and effort
EASY!Force high-pressure gun and EASY!Lock quick-release couplings. - Excellent mobility
- Flexibility
- Quality
- Accessory storage
Specifications
| Supply voltage (Ph / V / Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 490 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 110 / 11 |
| Max. pressure (bar / MPa) | 160 / 16 |
| Connection load (kW) | 2.2 |
| Power cable (m) | 5 |
| Weight with accessories (kg) | 20.6 |
| Weight including packaging (kg) | 22.8 |
| Dimensions (L × W × H) (mm) | 351 x 312 x 904 |
Supplied with
Spray gun, EASY!Force, High-pressure hose, 10 m, Spray lance 840 mm with Pressure cut-off EASY!Force
Catalogue Download

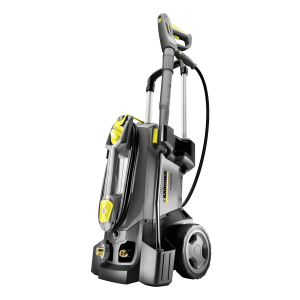

HD 5/12 C Order number: 1.520-900.0 Compact Class high-pressure cleaner Practical, mobile, versatile: the HD 5/12 C cold water high-pressure cleaner for vertical and horizontal operation. With accessory storage, brass cylinder head and automatic pressure relief. |
Description
The compact, lightweight and versatile HD 5/12 C cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. Also included in the equipment package are the newly developed EASY!Force high-pressure gun and the EASY!Lock quick-release fasteners. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. Effortless operation and time-saving set-up and dismantling therefore feature as standard and are representative of the successful overall concept of the machine.
- Save time and energy
- EASY!Force high-pressure gun and EASY!Lock quick-release fasteners.
- Portability
- Flexibility
- Quality
Specifications
| Supply voltage (Ph / V / Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 120 – 120 / 12 – 12 |
| Max. pressure (bar / MPa) | 175 / 17.5 |
| Connection load (kW) | 2.5 |
| Power cable (m) | 5 |
| Nozzle size (mm) | 35 |
| Weight with accessories (kg) | 24.4 |
| Weight including packaging (kg) | 26.8 |
| Dimensions (L × W × H) (mm) | 380 x 360 x 930 |
Supplied with
Spray gun, EASY!Force, High-pressure hose DN 6, 200 bar 10 m, Triple nozzle (0°/ 25°/40°): manual Spray lance 840 mm with Pressure cut-off and cleaning agent function: Suction
Catalogue Download
HD 6/13 C Order no. 1.520-950.0 Compact Class high-pressure cleaner Practical, mobile, versatile: the HD 6/13 C cold water high-pressure cleaner for vertical and horizontal operation. With accessory storage, brass cylinder head and automatic pressure relief. |
Description
The compact, lightweight and versatile HD 6/13 C cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. At the same time, it impresses with innovative new developments that increase working convenience for the operator in the long term by ensuring effortless operation and time-saving set-up and dismantling. The EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity. Overall, a comprehensive equipment package for excellent cleaning results, with a high level of convenience and a long service life.
- Save time and energy
- EASY!Force high-pressure gun and EASY!Lock quick-release fasteners.
- Portability
- Flexibility
- Quality
- Accessory storage
Specifications
| Supply voltage (Ph / V / Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 590 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 130 / 13 |
| Max. pressure (bar / MPa) | 190 / 19 |
| Connection load (kW) | 2.9 |
| Power cable (m) | 5 |
| Nozzle size (mm) | 38 |
| Weight with accessories (kg) | 25.6 |
| Weight including packaging (kg) | 28 |
| Dimensions (L × W × H) (mm) | 380 x 360 x 930 |
Supplied with
Spray gun, EASY!Force, High-pressure hose DN 6, 200 bar 10 m, Triple nozzle (0°/ 25°/40°): manual Spray lance 840 mm. Pressure cut-off and cleaning agent function: Suction
Catalogue Download

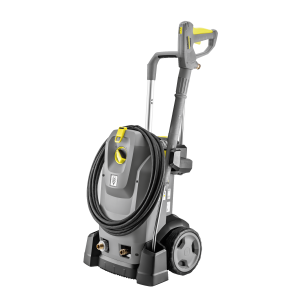

HD 6/15 M Order no. 1.150-930.0 Middle Class high-pressure cleaner AC-powered HD 6/15 M mobile high-pressure cleaner with 3-piston axial pump. Compact, reliable machine with high cleaning performance and energy efficiency for daily use. |
Description
Karcher mobile, unheated HD 6/15 M high-pressure cleaner comes with numerous innovative equipment features for safe and comfortable working as standard. The automatic pressure relief feature protects high-pressure components from loads in stand-by operation, for example, while the innovative EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, and the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. The machine is suitable for vertical or horizontal operation and thus offers a great deal of flexibility in use. The robust 3-piston axial pump with brass cylinder head increases cleaning power and energy efficiency by around 20%. Numerous options for stowing and storing accessories so that they are safe for transportation and a very service-friendly machine design round off the sophisticated concept of the HD 6/15 M.
- High-quality equipment
- Flexible operation
- Outstanding mobility
- Clever accessory storage
- Easy servicing
- Effortless and time-saving solutions
- Increased energy efficiency
Specifications
| Supply voltage (Ph / V / Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 560 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 150 / 15 |
| Max. pressure (bar / MPa) | 225 / 22.5 |
| Connection load (kW) | 3.1 |
| Power cable (m) | 5 |
| Water inlet | 3/4″ |
| Weight with accessories (kg) | 28.6 |
| Weight including packaging (kg) | 32 |
| Dimensions (L × W × H) (mm) | 400 x 455 x 700 |
Supplied with
Spray gun, EASY!Force, High-pressure hose DN 6, 200 bar 10 m, Power nozzle, Spray lance 840 mm. Pressure cut-off
Catalogue Download
HD 9/23 De Order no. 1.187-907.0 High-pressure cleaner with combustion engine For independent use in areas with poor infrastructure: the HD 9/23 De diesel-powered, mobile cold water high-pressure cleaner with 230 bar pressure for high cleaning performance. |
Description
Ideal wherever difficult external conditions and demanding cleaning tasks meet: the HD 9/23 De diesel-powered cold water high-pressure cleaner with Yanmar diesel engine generates the electricity it needs itself. If necessary, the required water can also be suctioned directly from bodies of water, allowing you to work in areas with poor infrastructure. With a water pressure of 230 bar, the machine measures up to almost any task. Its ergonomic frame concept and the puncture-proof wheels guarantee maximum mobility, while the robust basic frame can withstand heavy-duty use. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. A large water filter and a thermostat valve are built in to protect the pump. Useful optional enhancements, like the extra cage frame with eyelets for crane loading, round off the machine.
- Maximum independence
- Optimum ease of use
- Highly versatile
- For the toughest jobs
Specifications
| Flow rate (l/h) | 400 – 930 |
| Working pressure (bar / MPa) | 40 – up to 230 / 4 – up to 23 |
| Max. pressure (bar / MPa) | 270 / 70 |
| Water inlet | 1″ |
| Drive type | Diesel |
| Motor manufacturer | Yanmar |
| Motor type | L100 V |
| Number of simultaneous users | 1 |
| Portability | cart |
| Weight with accessories (kg) | 112.5 |
| Weight including packaging (kg) | 115.5 |
| Dimensions (L × W × H) (mm) | 866 x 722 x 1146 |
Supplied with
Spray gun, EASY!Force, Premium High-pressure hose DN 8, 315 bar 15 m, Power nozzle, Spray lance 840 mm. Servo control, Infinitely variable pressure and water flow regulation, Electro start, Cleaning agent function: Suction
Catalogue Download

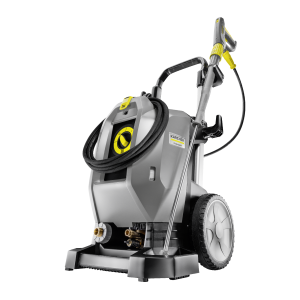

HD 9/20-4S Order no. 1.286-951.0 Super Class High-pressure cleaner The HD 9/20-4 S Classic cold water high-pressure cleaner delivers high power and Super Class quality – its ergonomic design makes it the ideal tool for daily use. |
Description
The HD 9/20-4 S cold water high-pressure cleaner is ideal for daily use in tough conditions. The finest materials guarantee top quality – and you can count on both from Kärcher. Inside the machine, a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head delivers powerful performance, complemented by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a light yet hard-wearing chassis, suitable for crane loading. For a compact design and maximum portability, the motor and pump unit is mounted vertically in an upright arrangement. In addition to this, it features accessory storage in the form of a stowage compartment and adjustable hooks. The HD 9/20-4 S takes ergonomic working to the next level. Thanks to the EASY!Force Advanced trigger gun, it can be operated effortlessly without any holding force, ably assisted by a rotating 1050-millimetre stainless steel lance. The Servo Control controller positioned between the trigger gun and lance can be used to adjust pressure and water volume.
- Compact upright design concept based on vertical arrangement of motor and pump unit
- 4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
- Intelligently designed service concept facilitates quick operations on site
- Wide-ranging accessories with EASY!Lock
- Multiple storage spaces for accessories integrated into the machine
Specifications
| Supply voltage (Ph / V / Hz) | 3 / 376 – 424 / 50 |
| Flow rate (l/h) | 500 – 900 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 50 – 200 |
| Max. pressure (bar / MPa) | 250 |
| Connection load (kW) | 7 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water inlet | 1 |
| Weight with accessories (kg) | 62.4 |
| Weight including packaging (kg) | 70.7 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Supplied with
Spray gun: EASY!Force Advanced, with soft grip padding; High-pressure hose length 10 m Premium quality, ID 8, 315 bar; Spray lance: 1050 mm; Power nozzle; Servo control
Equipment
4-pole, three-phase motor with air and water cooling; 3-piston axial pump: With stainless steel pistons; Pressure switch-off; Integrated water fine filter; Oil level indicator; Brass water inlet
Catalogue Download

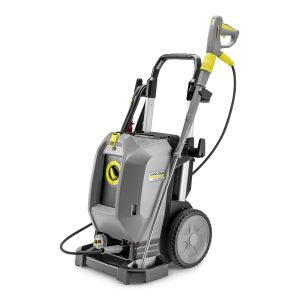

HD 10/25-4S Order no. 1.286-954.0 Super Class High-pressure cleaner The HD 10/25-4 S cold water high-pressure cleaner delivers premium quality, high performance and helpful assistance systems. Designed for ergonomic working and maximum portability. |
Description
The HD 10/25-4 S cold water high-pressure cleaner takes ergonomic working to the next level. The practically designed EASY!Force Advanced trigger gun makes it effortless to use without any holding force. A rotating 1050-millimetre stainless steel lance delivers maximum efficiency. The Servo Control enables the user to control the pressure and water volume straight from the trigger gun/lance. Assistance systems and an LED status display also enhance the user-friendly design. You can count on Kärcher to use the best materials to guarantee the highest, longest-lasting quality. Working away inside the machine is a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head. The HD 10/25-4 S is driven by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a lightweight yet hard-wearing chassis, making crane loading an option. The upright structure, whereby the motor and pump unit is installed in a vertical arrangement, offers maximum portability in practice. The compact design also incorporates clever accessory storage such as a stowage compartment and adjustable hooks.
- Compact upright design concept based on vertical arrangement of motor and pump unit
- 4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
- Intelligently designed service concept facilitates quick operations on site
- Assistance systems and LED status display
- Wide-ranging accessories with EASY!Lock
- Extensive range of accessories and attachment kits
Specifications
| Supply voltage (Ph / V / Hz) | 3 / 376 – 424 / 50 |
| Flow rate (l/h) | 500 – 1000 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 80 – 250 |
| Max. pressure (bar / MPa) | 280 |
| Connection load (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water inlet | 1″ |
| Weight with accessories (kg) | 69.8 |
| Weight including packaging (kg) | 78.1 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Supplied with
Spray gun: EASY!Force Advanced, High-pressure hose length 10 m Premium quality DN 8, 315 bar, Spray lance: 1050 mm, Power nozzle, Servo Control
Equipment
4-pole three-phase motor with air and water cooling; 3-piston axial pump: with stainless steel pistons; Pressure cut-off; Integrated water fine filter; Motor protection electronics with LED display; Sight glass for oil level; Brass water inlet
Catalogue Download

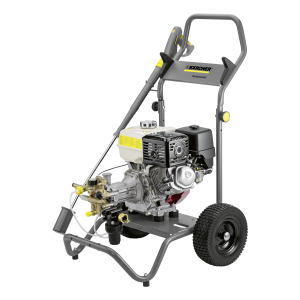

HD 9/23 G Order no. 1.187-906.0 Petro-powered High-pressure cleaner With the HD 9/23 G petrol-powered cold water high-pressure cleaner with Honda petrol engine, you can work independently and conveniently while staying mobile – even under adverse external conditions. |
Description
Fitted with a Honda petrol engine, the HD 9/23 G cold water high-pressure cleaner works completely independently of the power connection. Developed for the best cleaning results – thanks to a water pressure of 230 bar – and protected by a very robust basic frame, the machine impresses even under extreme conditions. The ergonomic frame concept offers maximum mobility, even on uneven surfaces. Puncture-proof wheels, the successful operating concept and a range of storage possibilities for accessories make the machine very convenient to use. Other convenient features include the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, and the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections. The powerful pump enables the removal of water from lakes or ponds in an emergency. It is protected by a large water filter and a thermostat valve which prevents it from overheating in recirculation mode. Also available for the HD 9/23 G is a cage frame with eyelets to facilitate crane loading, as well as an attachment kit for a hose reel.
- Maximum independence
- Optimum ease of use
- Highly versatile
- For the toughest jobs
Specifications
| Flow rate (l/h) | 400 – 930 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar / MPa) | 40 – up to 230 / 4 – up to 23 |
| Max. pressure (bar / MPa) | 270 / 70 |
| Water inlet | 1″ |
| Drive type | Petro |
| Motor manufacturer | Honda |
| Motor type | GX 390 |
| Number of simultaneous users | 1 |
| Portability | cart |
| Weight with accessories (kg) | 75.5 |
| Weight including packaging (kg) | 82.8 |
| Dimensions (L × W × H) (mm) | 866 x 722 x 1146 |
Supplied with
Spray gun: EASY!Force Advanced, High-pressure hose length: 15 m, High-pressure hose type: Premium quality, High-pressure hose specification: DN 8, 315 bar, Power nozzle, Servo Control
Equipment
Infinitely variable pressure and water flow regulation, Detergent function: Suction
